Armed Launch

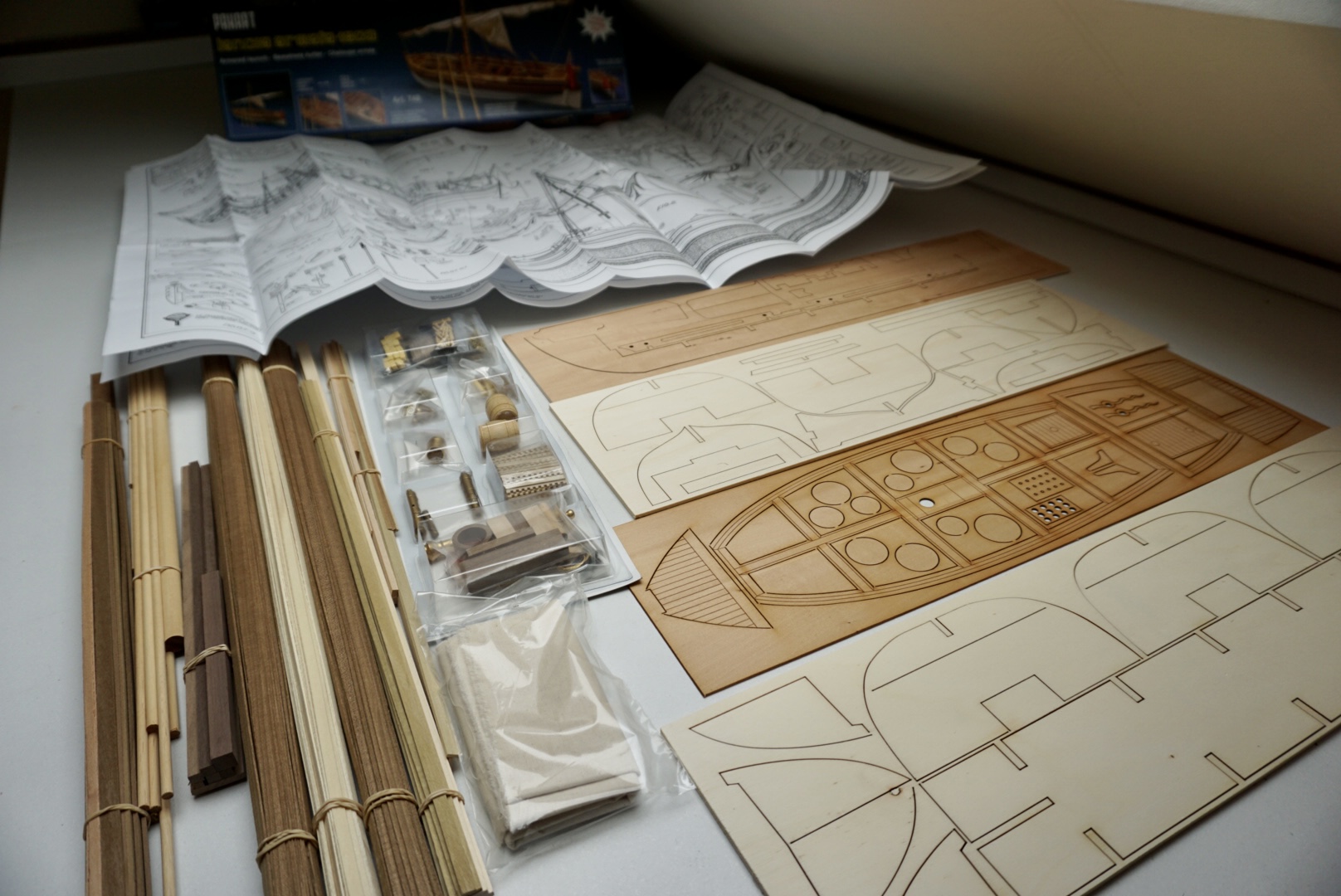

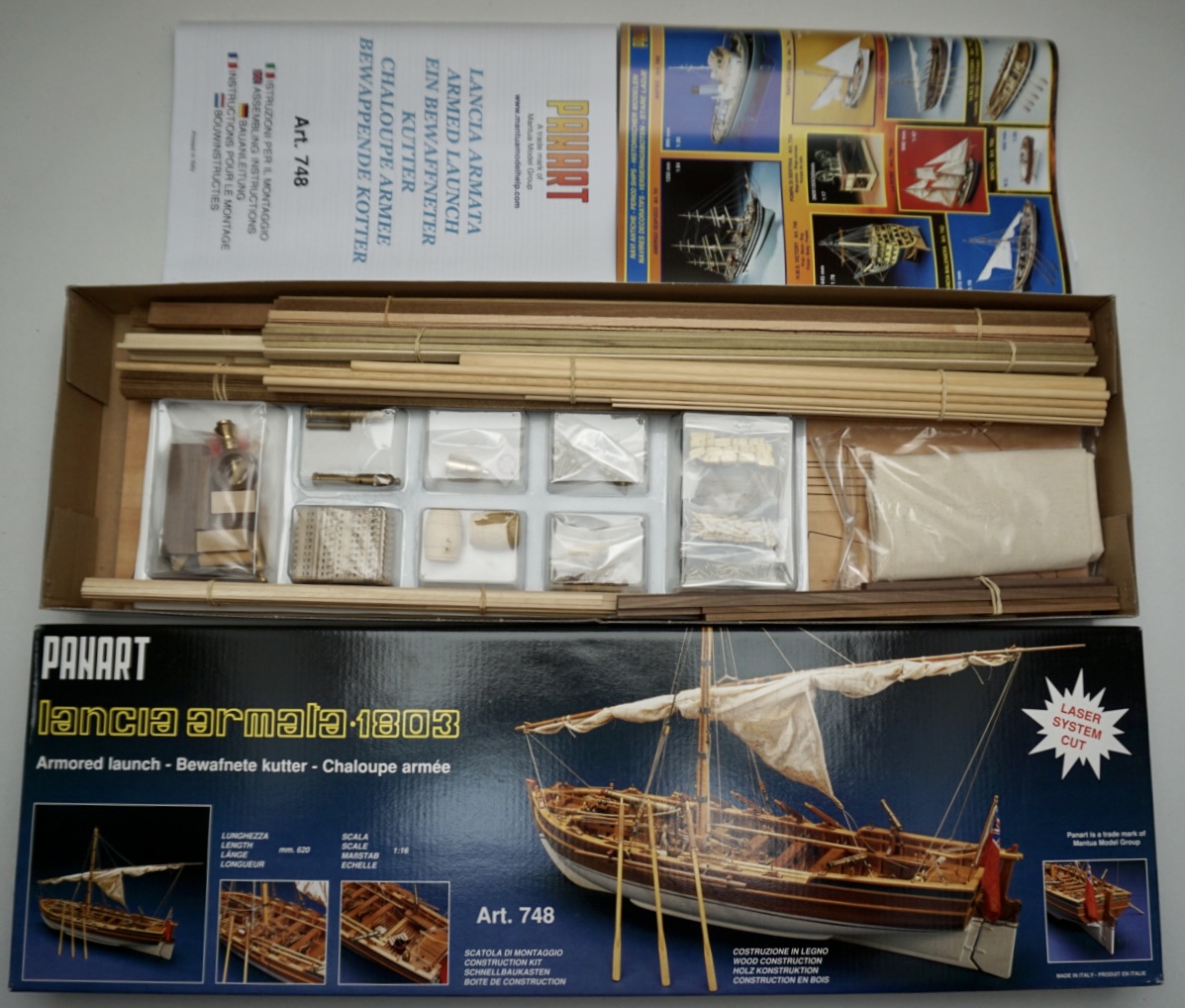

Before starting the build, it is important to carefully go through the instructions and plans. The contents of the kit are checked, frame, keel and planking parts are identified and matched to the drawings.

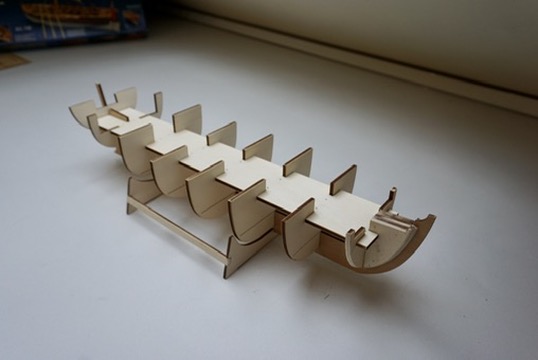

The keel and frames are removed from the sheets, cleaned along the outline and test‑fitted dry. The assembly is set up on a flat base, with vertical alignment and symmetry checked at each step. Once everything is verified, the frames are glued to the keel and the hull geometry is checked again.

On this boat the first planking layer remains visible, so it has to be treated as a finished surface from the start. Each plank is fitted in place, stealers are shaped where needed and the ends are trimmed at the bow and stern. Joints and transitions are kept as even as possible, because major defects cannot be corrected later by sanding.

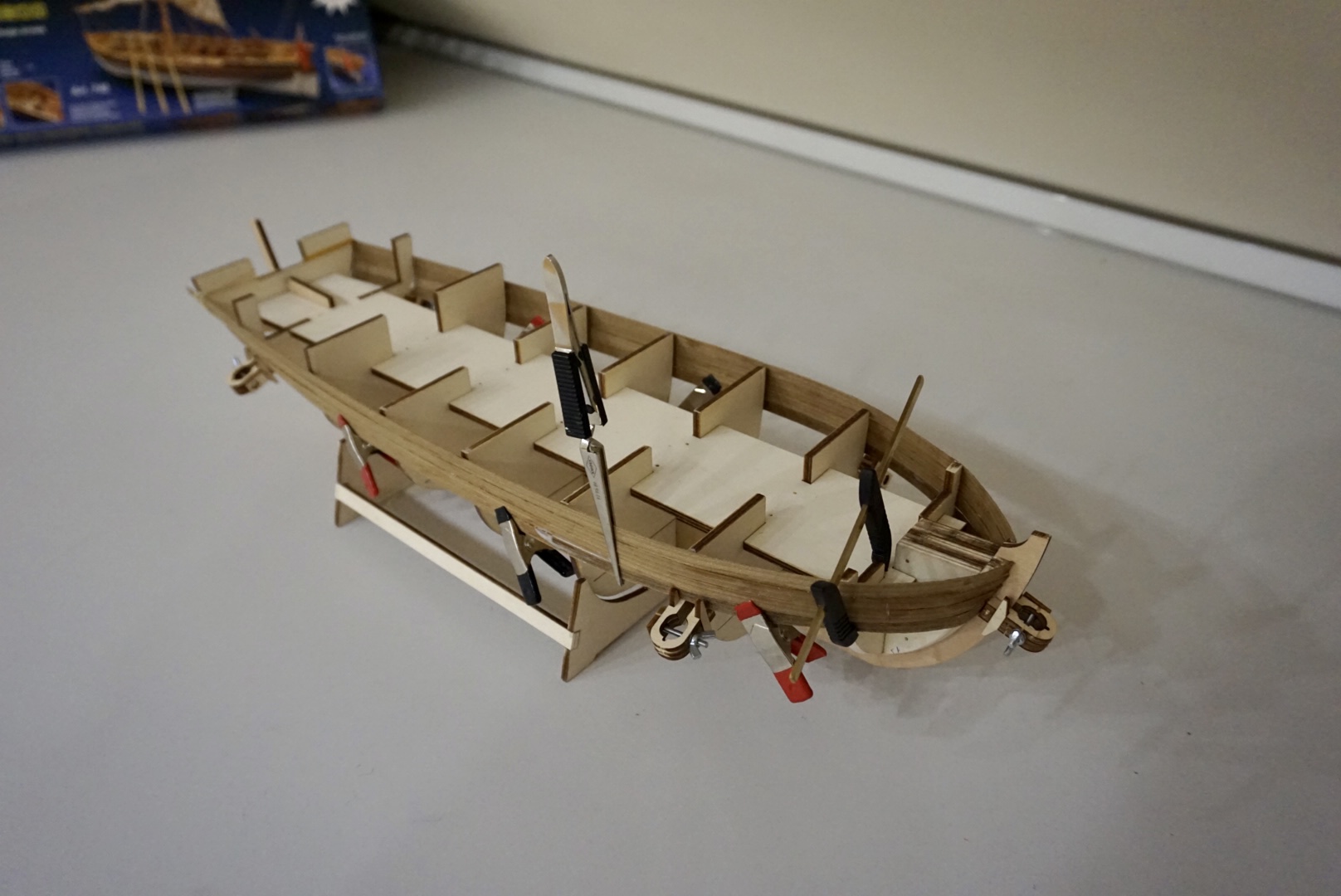

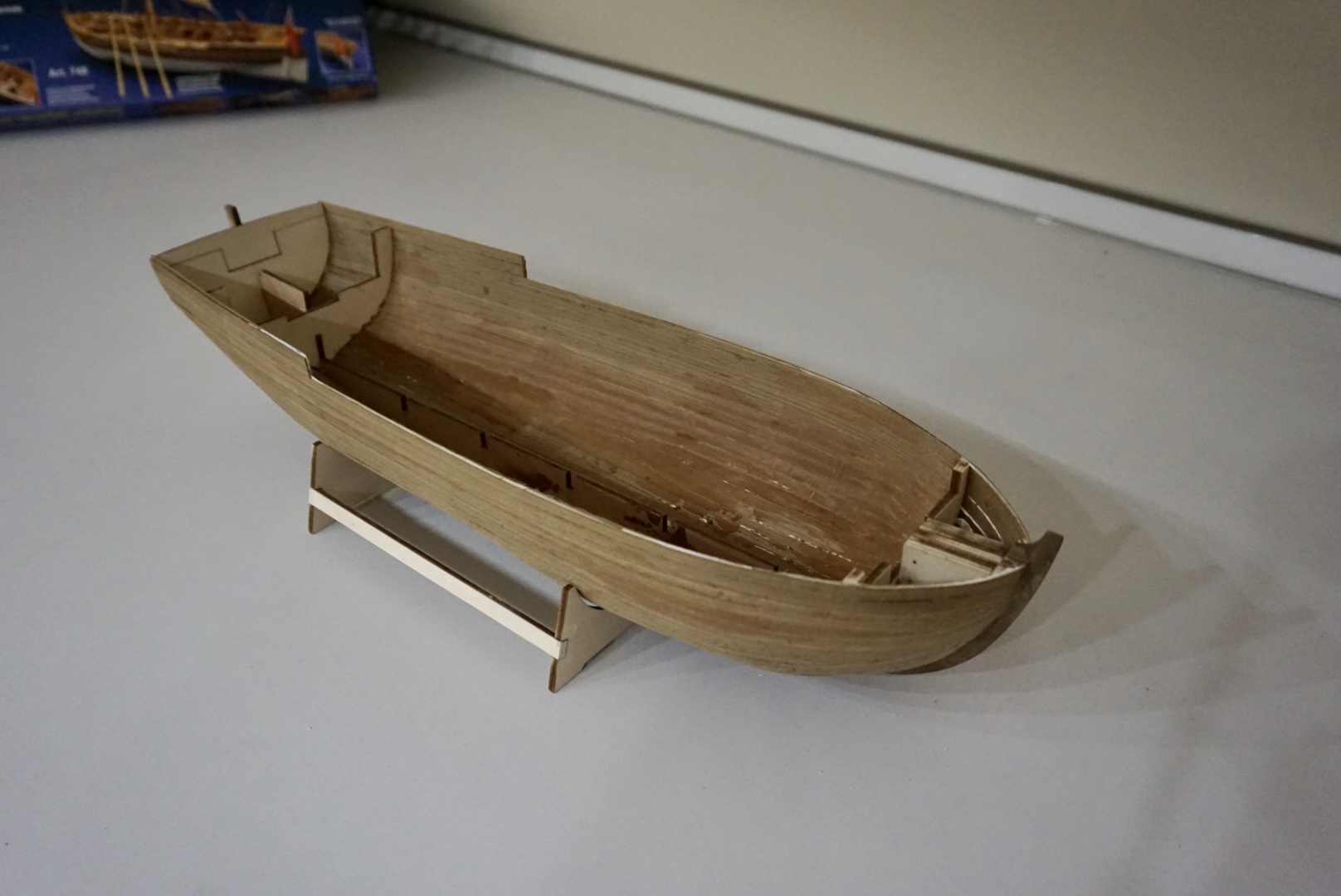

Once the framing is complete, the hull is prepared for planking. The frames are faired, steps and sharp edges are removed, and smooth hull lines are formed along the entire length. The first planking layer is laid from the bulwarks down to the keel, with the fit of each plank carefully controlled. Extra attention is paid to the bow and stern, where the curves are the most demanding.

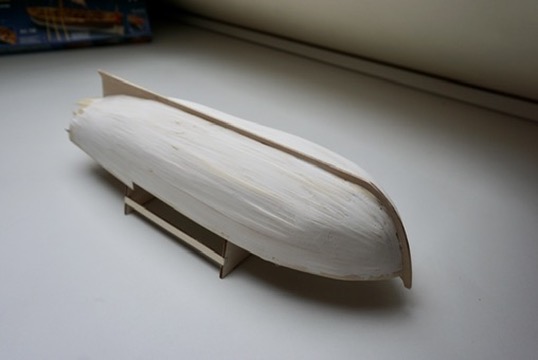

The second and third planking layers follow the geometry already set by the first one. Planks are laid with staggered joints, building up the final thickness of the hull and a clean, continuous line along the sides. Between layers the hull is filled where needed and sanded with coarse sandpaper. After all three layers are in place, the hull gets a final sanding to even out transitions, remove small steps and get rid of any remaining marks.

The finishing comes next. The outer hull is treated with wax to bring out the wood grain. The interior elements — thwarts, beams and other internal parts — are coated with Danish oil.

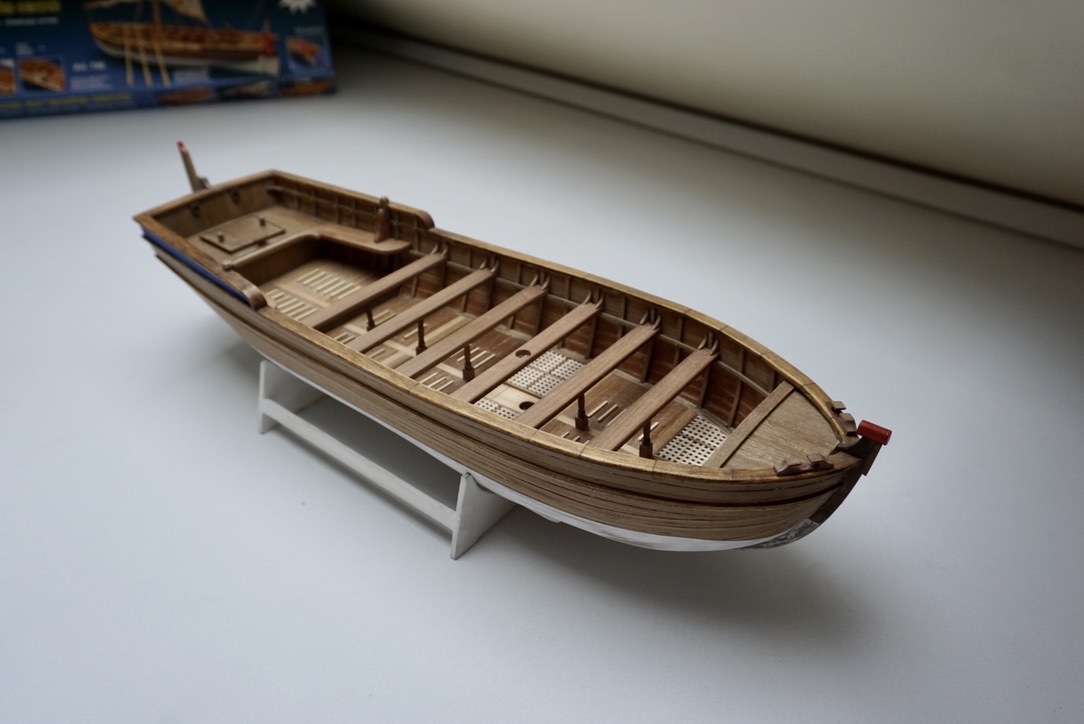

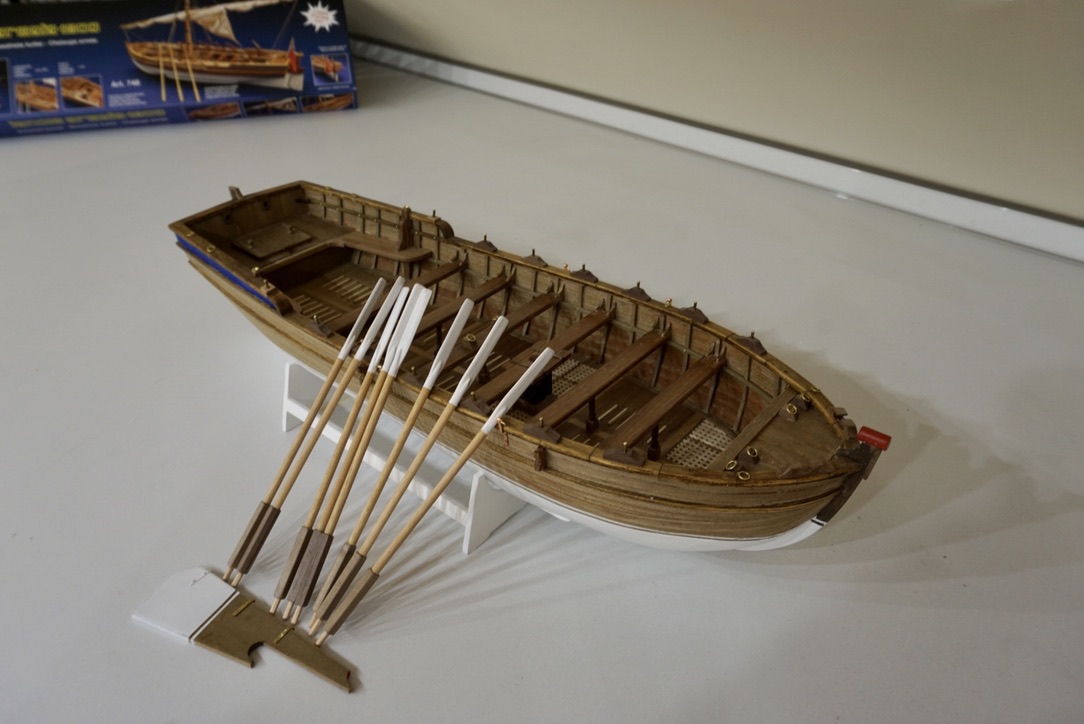

Once the hull is complete, work moves on to the interior of the open boat. The thwarts for the oarsmen, structural members, beams and longitudinal elements are installed in sequence. Each part is fitted carefully in place and any excess glue is removed immediately, as the inside of the hull remains completely exposed on the finished model.

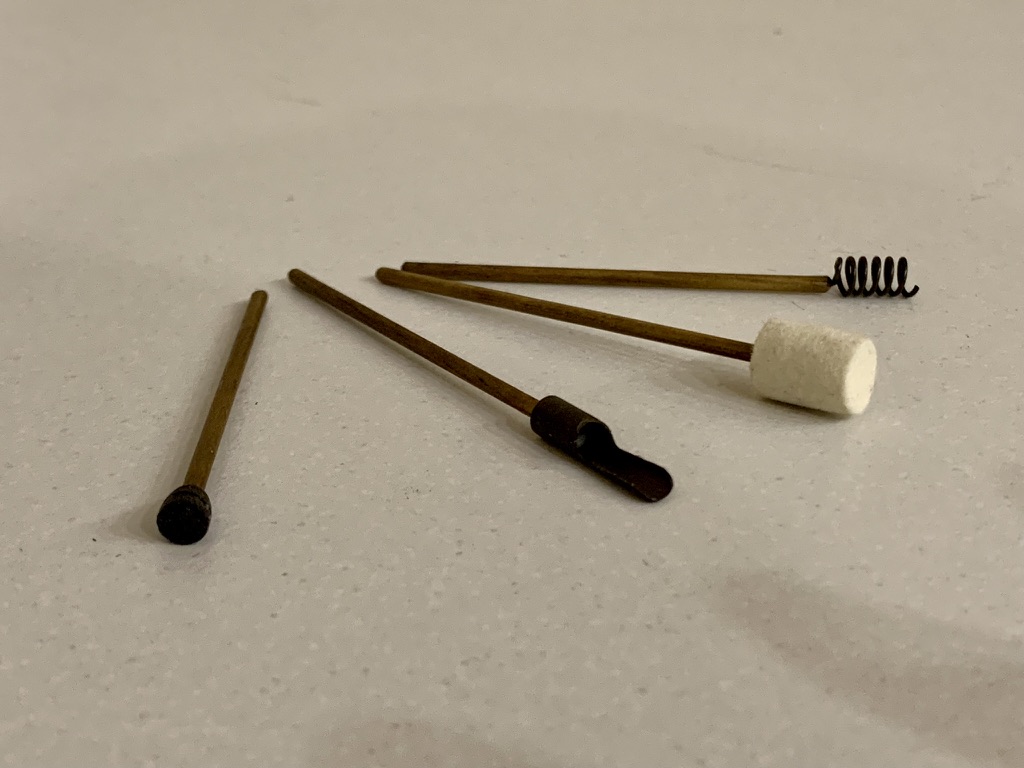

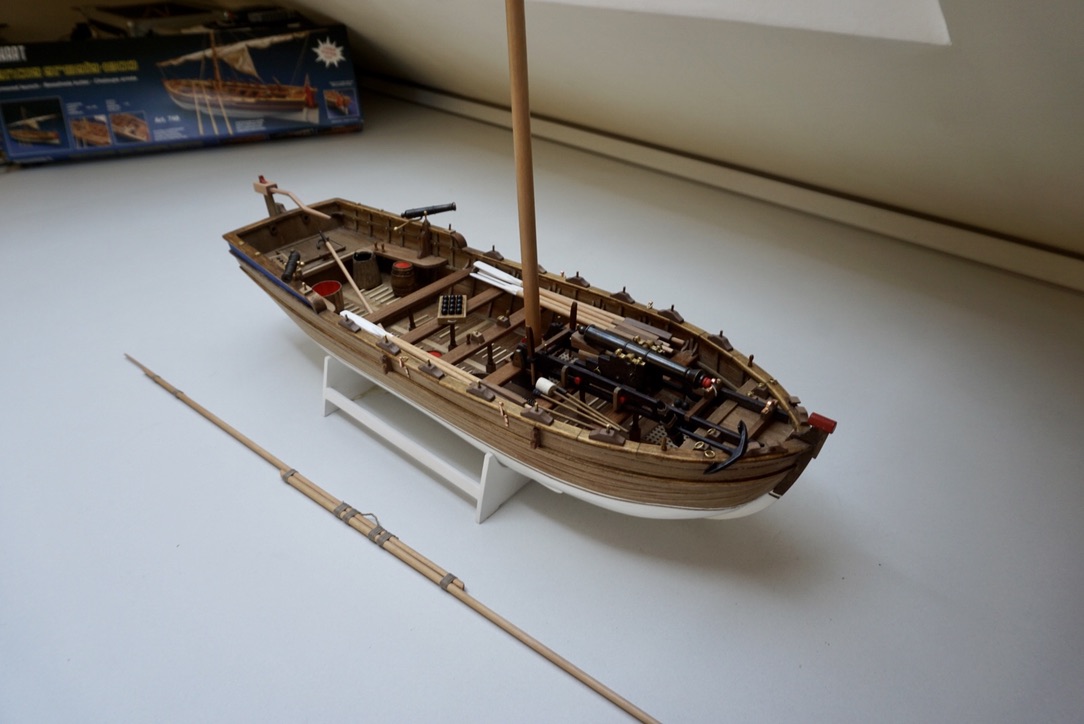

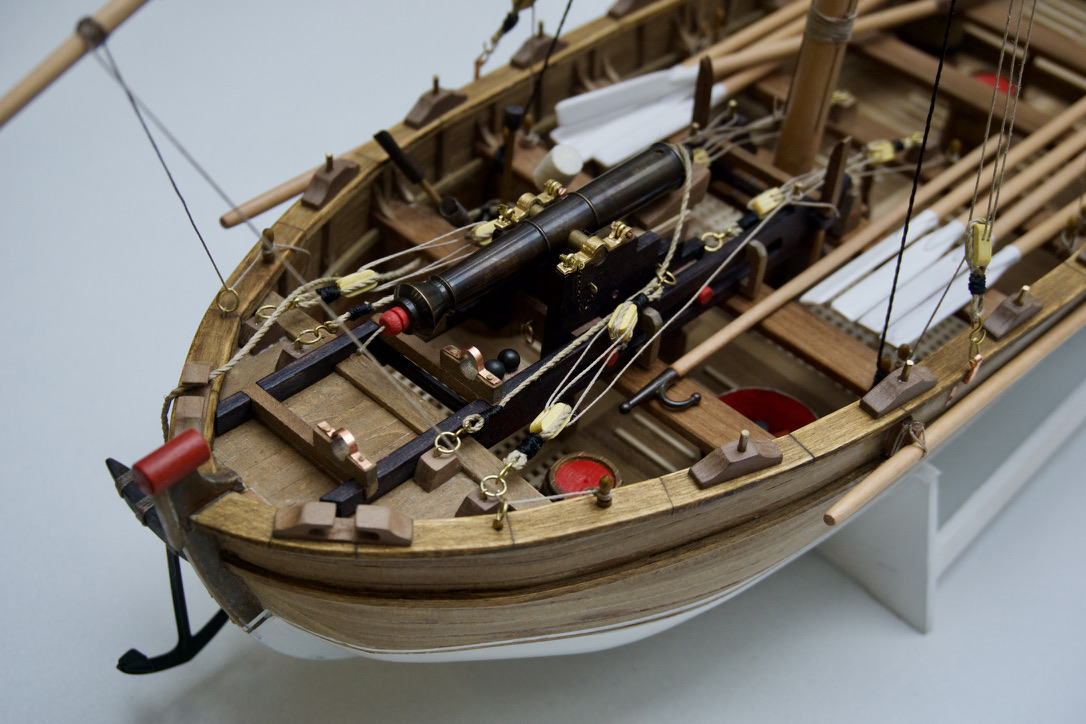

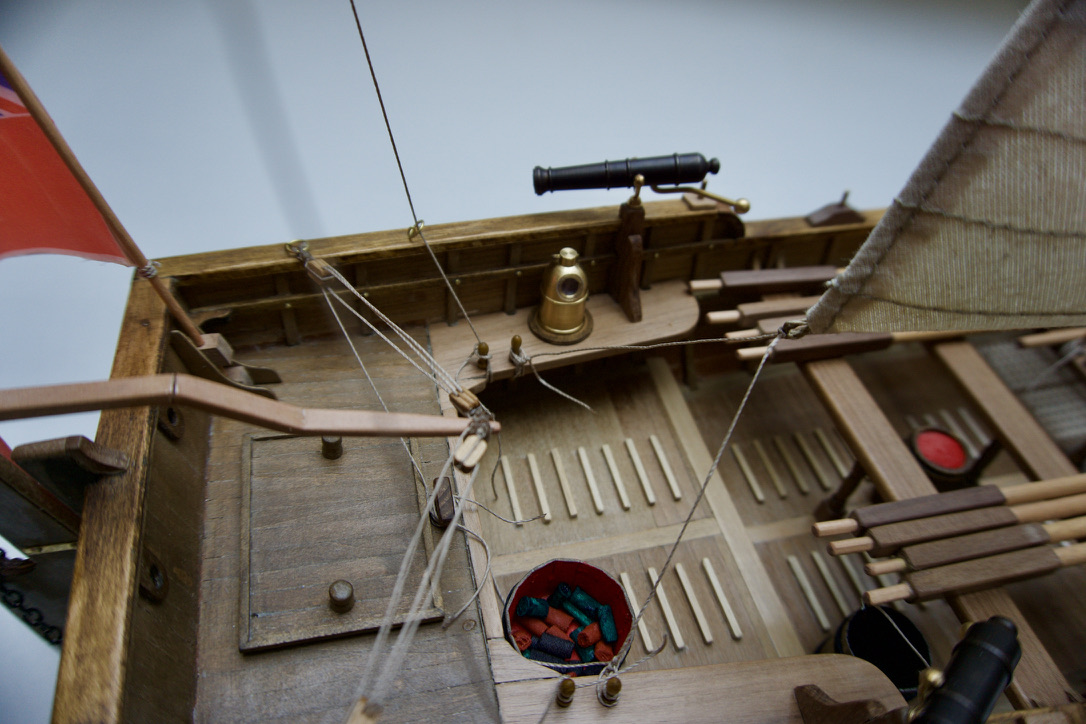

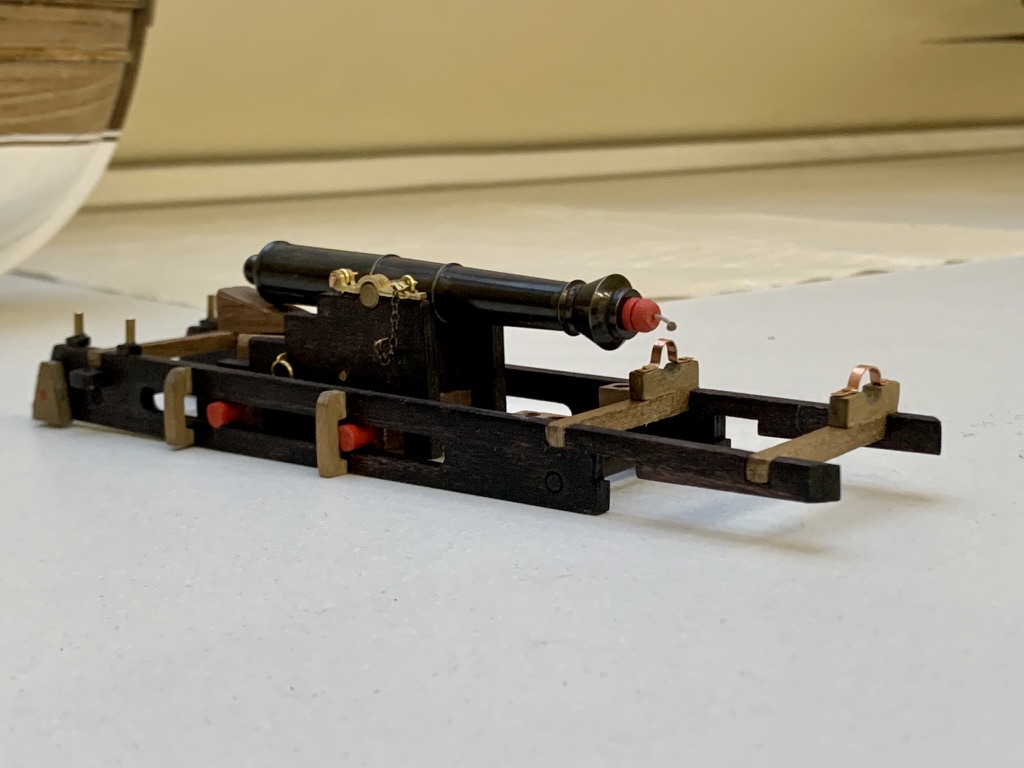

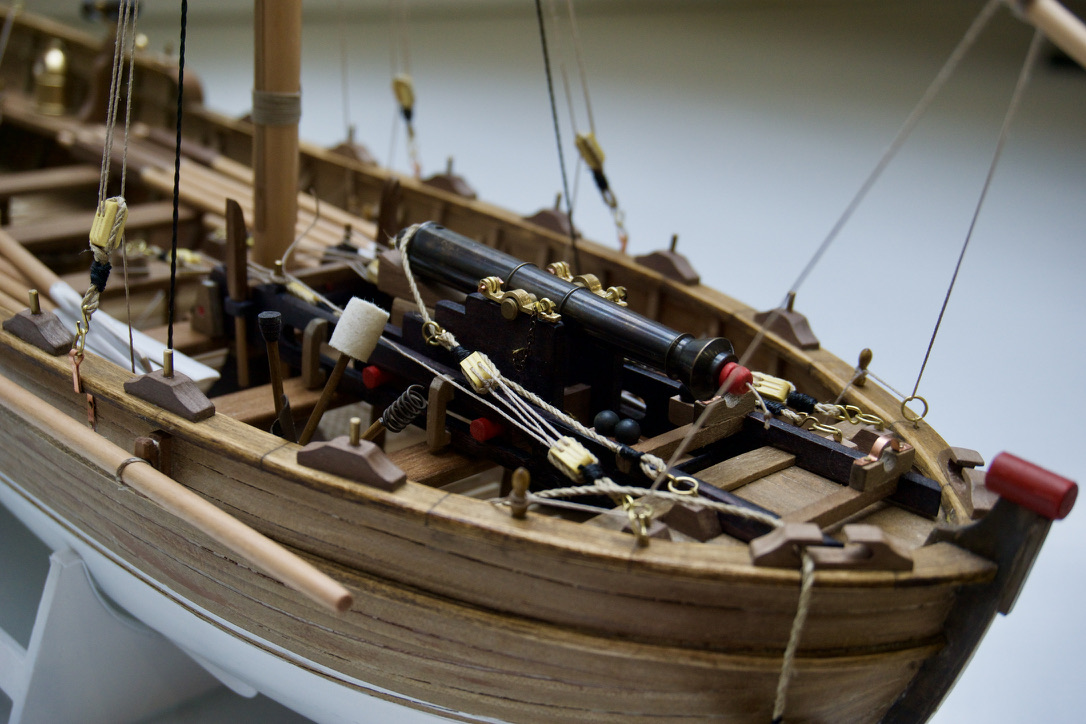

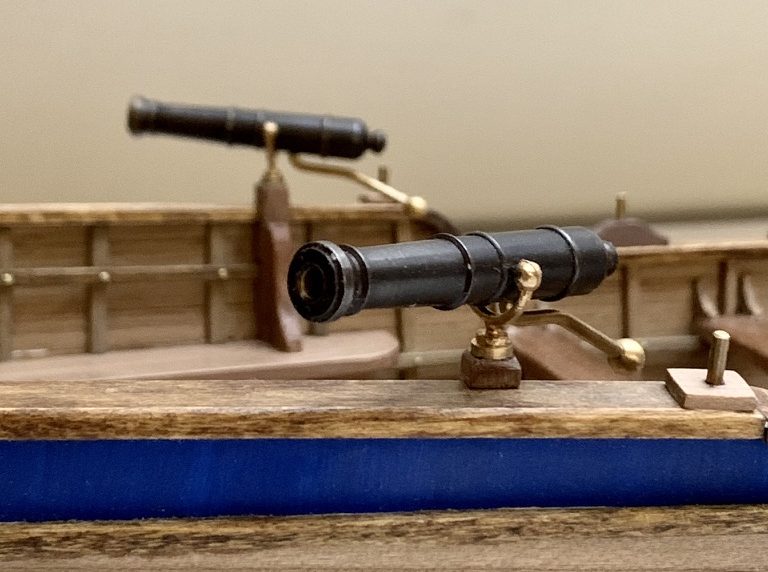

When the woodwork is treated and fully dry, the armament is added. The main gun on its carriage is mounted in the central part of the boat. Two falconets are fixed at the stern. All guns are blackened, bringing the metal to an even dark finish. After that, the small parts around the weapons are installed: fittings, supports and other details provided in the kit.

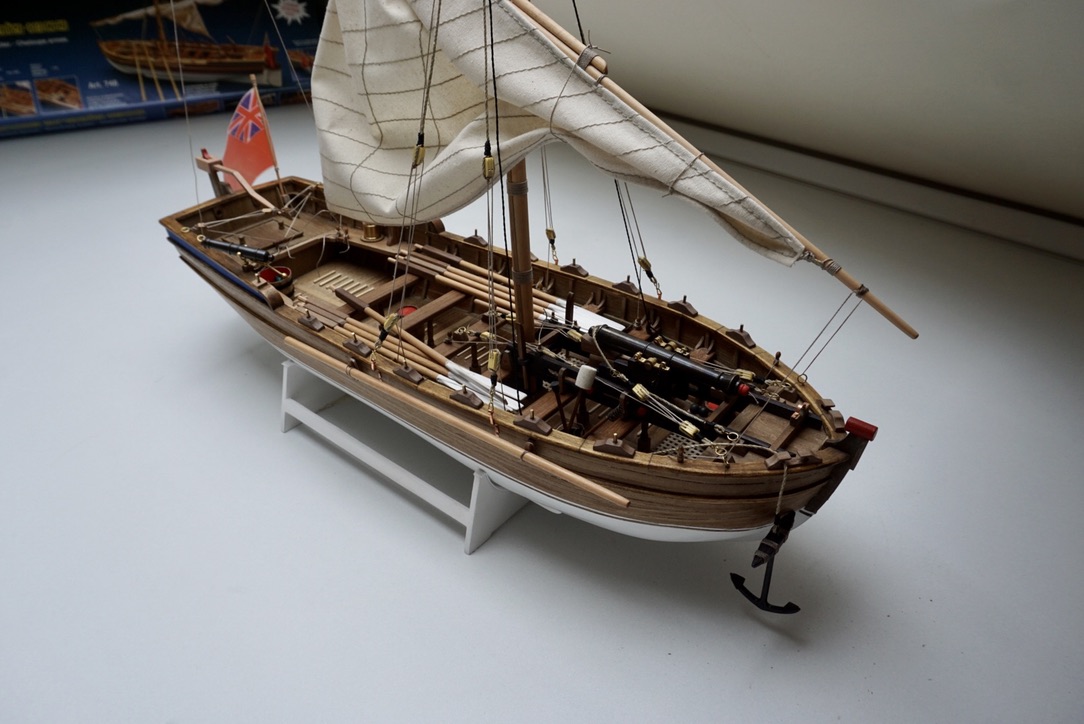

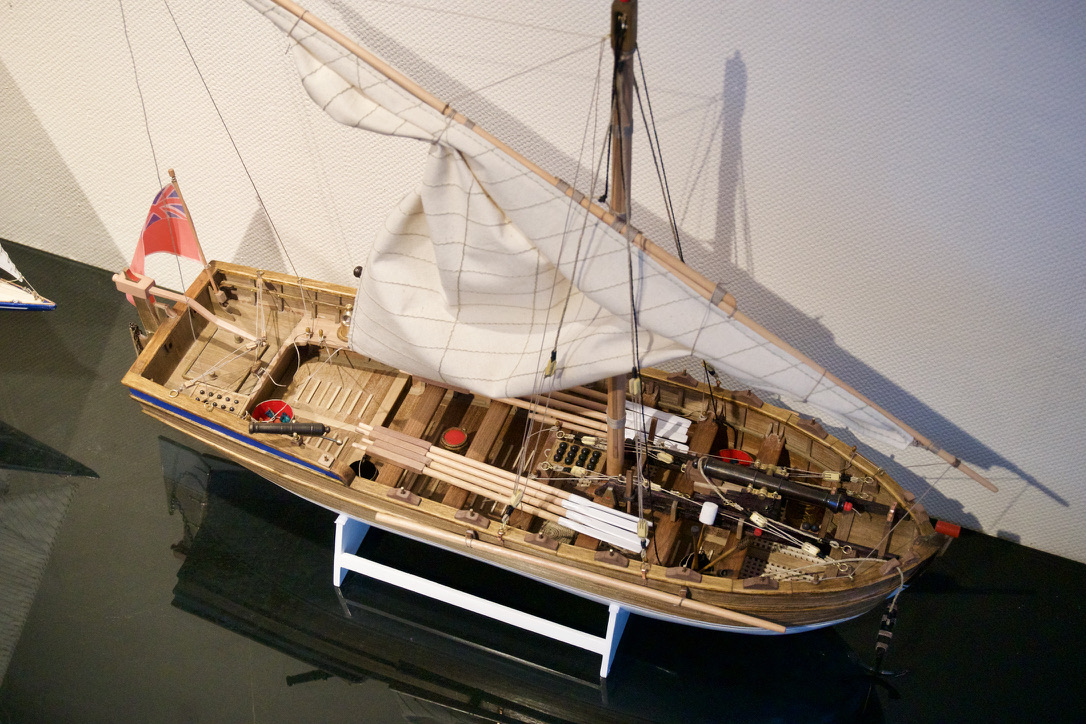

At the next stage the mast and yards are assembled and installed, and the rigging is prepared. The lines are run according to the kit’s rigging plan and tensioned carefully. The sails are cut from cloth using the supplied patterns, the edges are finished and the sails are then attached to the yard. On this model the sails are partially bunted up to the yard, so the rig looks compact and calm rather than fully deployed. In the end, hull, interior and armament are checked once more as a single whole, with a final look at the fairness of the lines and the neatness of all joints.
